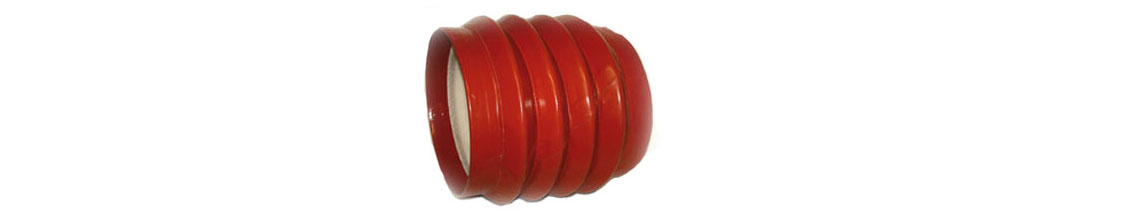

STENFLEX® fabric expansion joints are chemically resistant to acid and alkaline gases and remain stable at overpressure or underpressure. They are extensively used for pipeline systems working with gaseous media at high temperatures up to +700°C. Plant and equipment engineering for conveying hot air or flue gas is a typical application.
Damp vibration and noise
Compensate motion and expansion
Compensate inaccurate assembly
Coating and sealing layer material:
EPDM, CR (Neoprene), PTFE (Teflon), CSM (Hypalon), FPM (Viton), VMQ (Silopren), stainless steel film
Reinforcing material:
Polyester fibres, Aramid fibres, Glass fibres, Silicate fibres Insulating material: Mineral wool, Ceramic wool
Available nominal widths and pressure stages:
Nominal width: DN 80 – 5000
Pressure stages: PN 0.2 – 4
Types of connection:
Tensioning clamp, Retaining flange, Protruding flange, Combined connections
Chemical Industries
Pharmaceutical Industries
Food and beverage Industries
Waste disposal and treatment Plants
Type GWK-10, GWK-11, GWK-12, GWK-13
Single convolution universal fabric expansion joint
DN 80 – DN 5000
Data Sheet
Type GWK-20, GWK-21, GWK-22, GWK-23
Multiple convolution universal fabric expansion joint
DN 80 – DN 5000
Data Sheet
Type GWK-30, GWK-31, GWK-32, GWK-33
Cylindrical universal fabric expansion joint
DN 80 – DN 5000
Data Sheet
