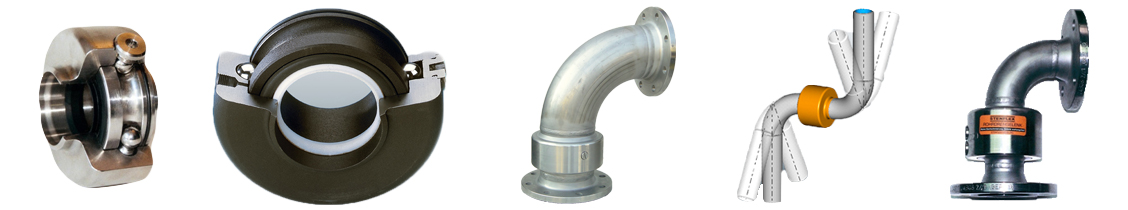

STENFLEX®swivel joints are suitable for pipelines carrying liquid and gaseous media and have the ablity to withstand extreme temperature and pressure,- means that they can be used even under the most demanding operating conditions. STENFLEX® swivel joints are particularly good at absorbing torsion movements. Besides pivoting, complete rotations can be executed at low speed. In such cases the swivel joints can be combined and arranged so that the lines can follow any possible path in space.
Loading and swivel arms
Swivel joint shears
Hydraulic supply lines
Roll stands
Aeration tanks in sewage works
Filling processes on open terrain
Steelworks, rolling mills and smelting works
Available nominal widths and pressure stages:
Nominal width: DN 8 – 700
Pressure stages: PN 40 – 420
Types of connection:
The basic unit combination of the swivel joint is supplied with the relevant connections. Flange, weld-on end or threaded connection types are available.
Designs:
Design 11: Straight version
Design 12: Version angled on one side
Design 13: Version angled on both sides
Building services ( Schools and Hospitals)
Engineering-Residential complex
Type DG-01
DN 20 - DN 100
Data Sheet
Type DG-02L
DN 125 - DN 700
Data Sheet
Type DG-02S
DN 20 - DN 150
Data Sheet
Type DK-01
DN 8 - DN 50
Data Sheet
Type DK-02
DN 8 - DN 50
Data Sheet
FTR/G00
PN 10, PN 16, PN 40 DIN 2501 ASA 150 Ibs
Data Sheet
